Curbstone Edge Cutting Machine DF1200-5S
Curbstone Edge Cutting Machine DF1200-5S advantages:
1. Two stick of cylinders on trolley pushing the sliced pieces together to ensure a 90° cut.
2. No foundation needed, easy installation, easy for shippment.
3. Suitable for cutting mass production with regular sizes.
4. Cutting width can be adjusted according to cutting demands.
| Dimension | 5500×2300×2300mm |
| Diameter of blade | 1200mm |
| Number of blades | 5pcs |
| Worktable size | 2500×1800mm |
| Working stroke | 2500mm |
| Max.vertical stroke | 600mm |
| Max.cutting depth (height) | 450mm |
| Main motor power | 55kw |
| Main motor power | 22kw*3 |
| minimum cutting width | 600mm |
| Max. cutting length | 2500mm |
| main spindle diameter | 120mm |

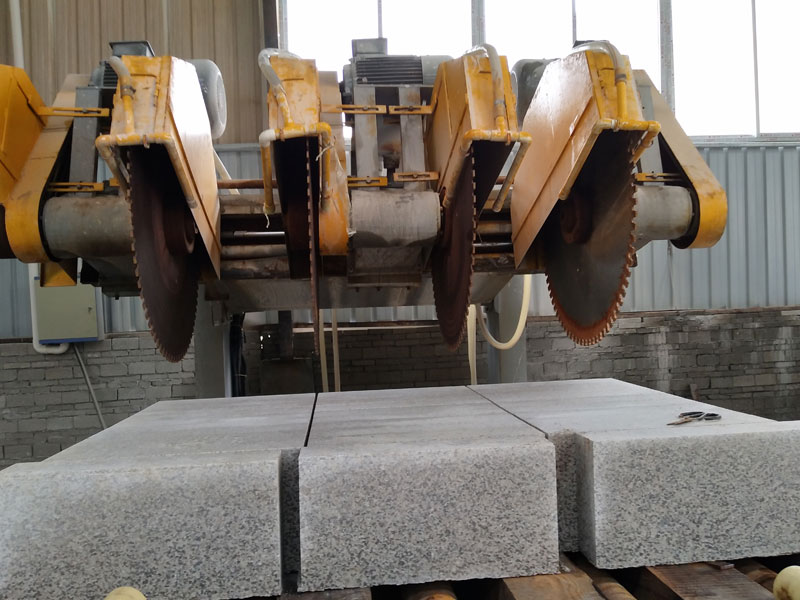

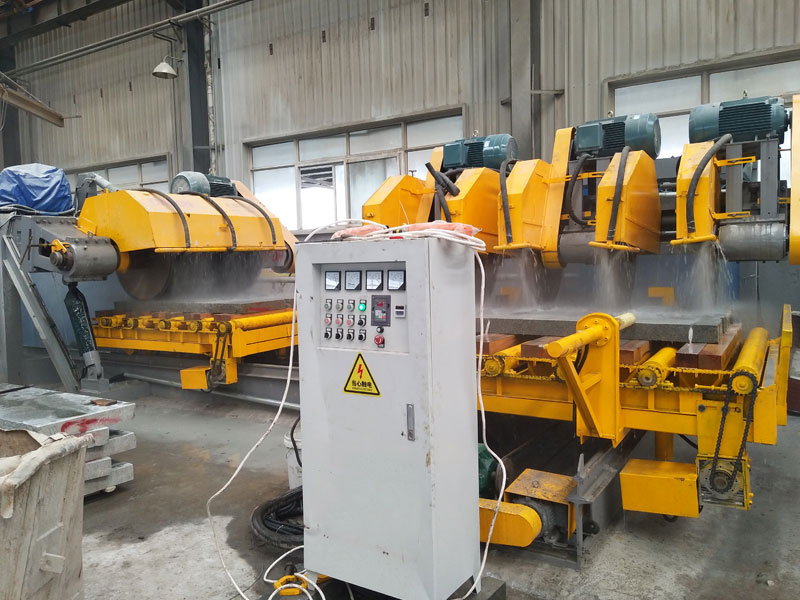

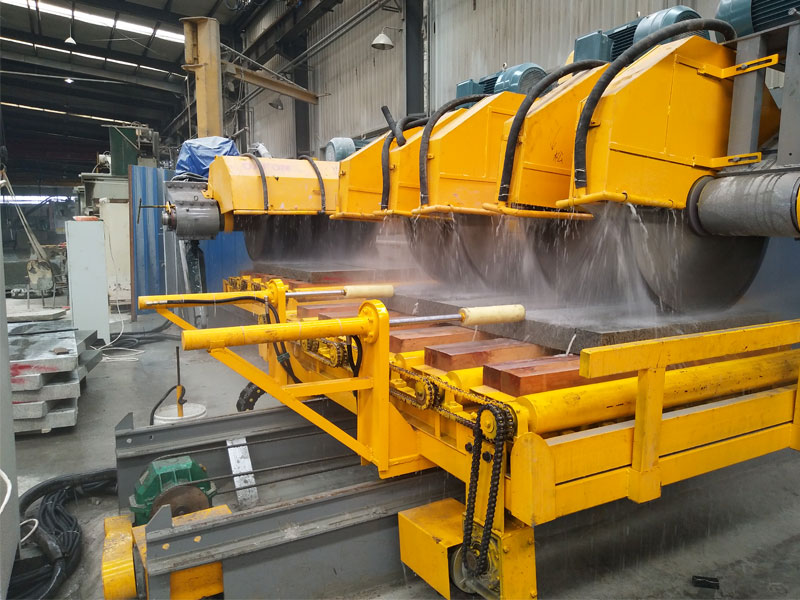

Product Display
