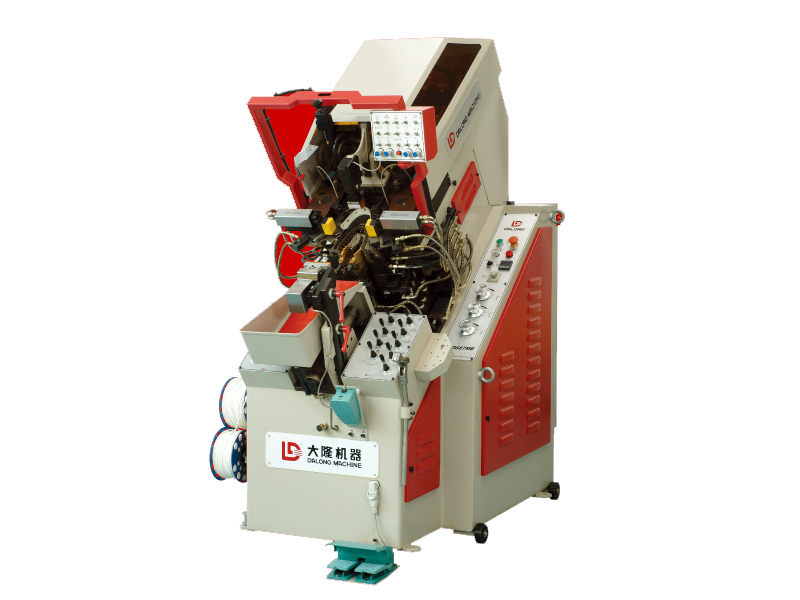

9-Pincer Automatic Toe Lasting Machine (With Hot Melt)
LD-687MB This machine is equipped with the automatic toe lasting. The plastic plate can choose the 2-step adjusted to match the shape of shoes and also can be quickly changed for different sizes of shoes and also can change automaticly between left and right shoe. The vamp highly attached after lasting. Save labor cost and environmental protection.
With the PLC control system, it is so easy to operate..
With the design of specially tracked wipers the all-around multipoint "TEFLON" toe band ensures the upper to be evenly attached to the last after lasting, no protrusion will occur.
The design of free calibrating of toe head pressing stroke supplies the most stable pressing force.
Each set of pincers can be individually adjusted to their corresponding positions and function with automatic balancing. The operator can manually pull down or reclamp any set of pincers.
It has the pincers rapid installing and relasing structure. The fifth pincer, which adopts the latest rotating technology structure, makes the upper more attached to the last.
Pincer-plate's shoe size adjusting uses synchronous moving horizontal and independently with two steps changing at one side. Faster and accurately.
Pincer-plate's shoe size adjusting uses synchronous moving horizontal and independently at one side. Faster and accurately.
| Model | LD-687MB |
| Capacity | 1200 Pairs/8h |
| Power | 2.2 kw |
| Hydraulic pressure | 5 MPa |
| Heating power | 1.2 kw |
| N.W. | 1300kg |
| Dimension(LWH) | 1750x1050x1950mm |
