PVC DIP 2 COLOR MACHINE
PVC DIP 2 COLOR MACHINE
| Number of stations | 16 Stations |
| Screw Diameter | 2×￠70 mm |
| Screw rotating speed | 0-160 r/min |
| Screw length and diameter ratio | 20︰1 |
| Max injection capacity | 580 cm³ |
| Plastifying Capacity | 40 g/s |
| Mould closing way | parallel colsing type |
| Mention here trip | 80 mm |
| Bottom core lifting stroke | 15 mm |
| Shoe Cramp height | 210-260 mm |
| Mould frame dimensions | 380×180×80 mm |
| Mould opening stroke | 2×50 mm |
| Production capacity | 160 pair/h |
| Total power of the whole machine | 35.5 KW × 52 KW |
| Outline dimensions of the whole machine | 5388×8789×1955 mm |
| Total weight of the whole machine | 14500 kg |

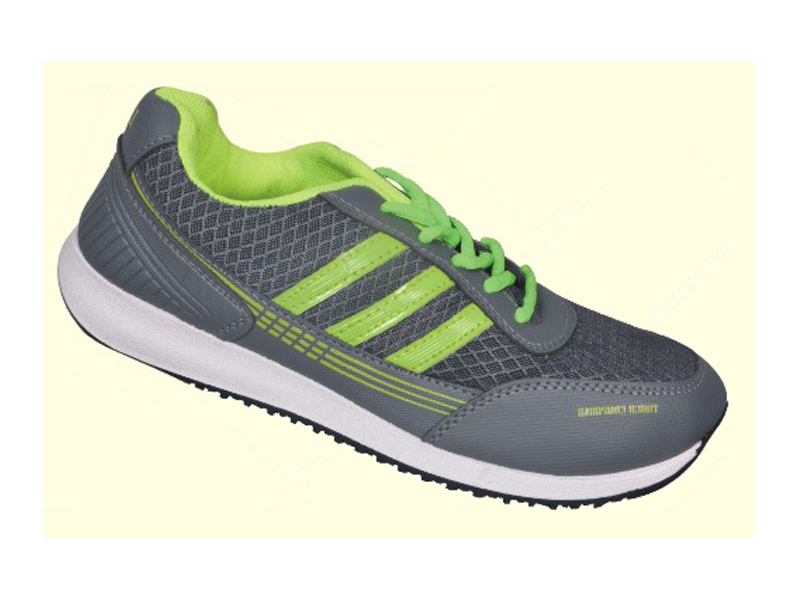

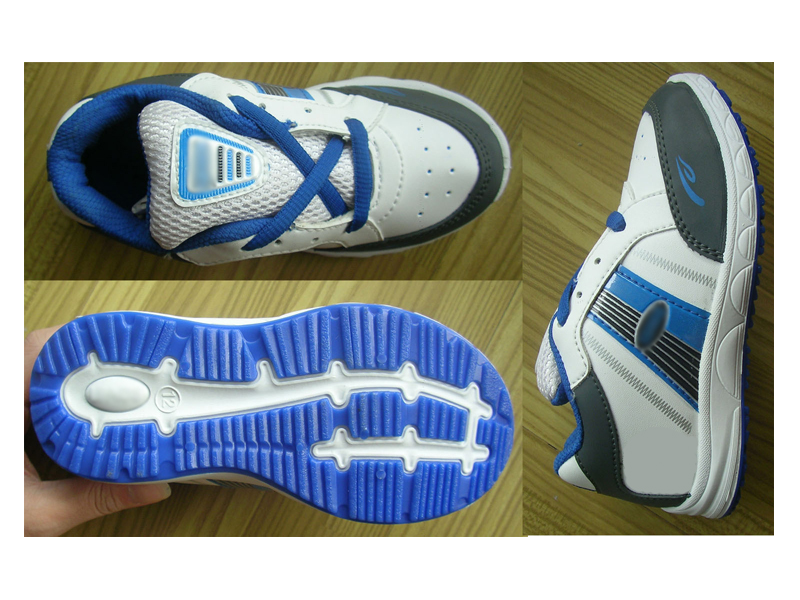

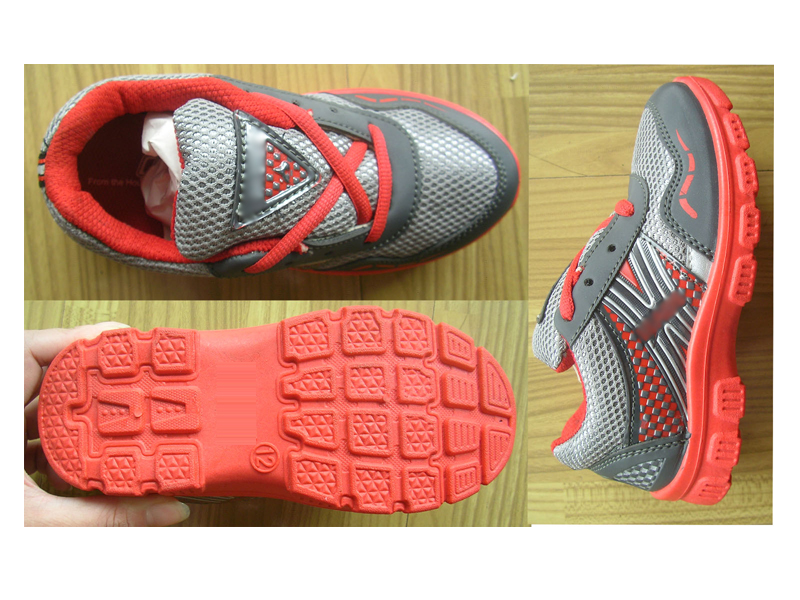

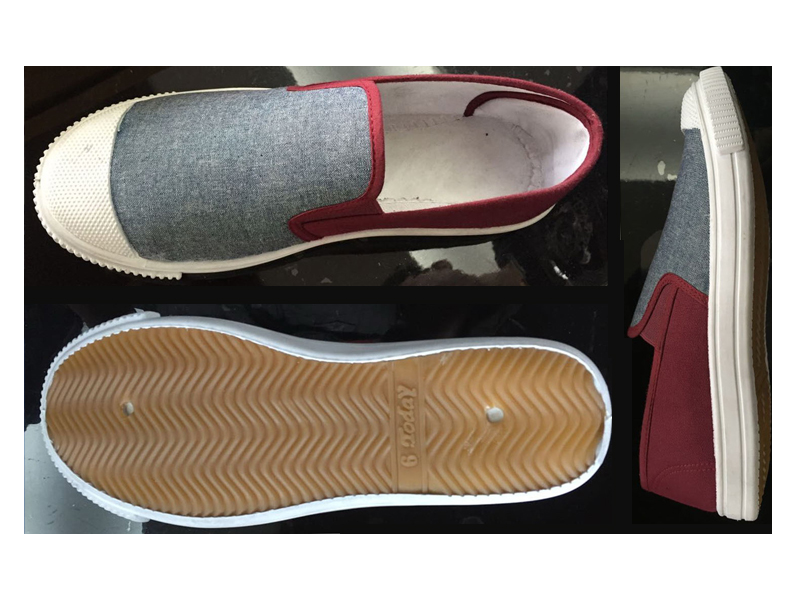

Product Display
