Stuck On Line LD - 587C

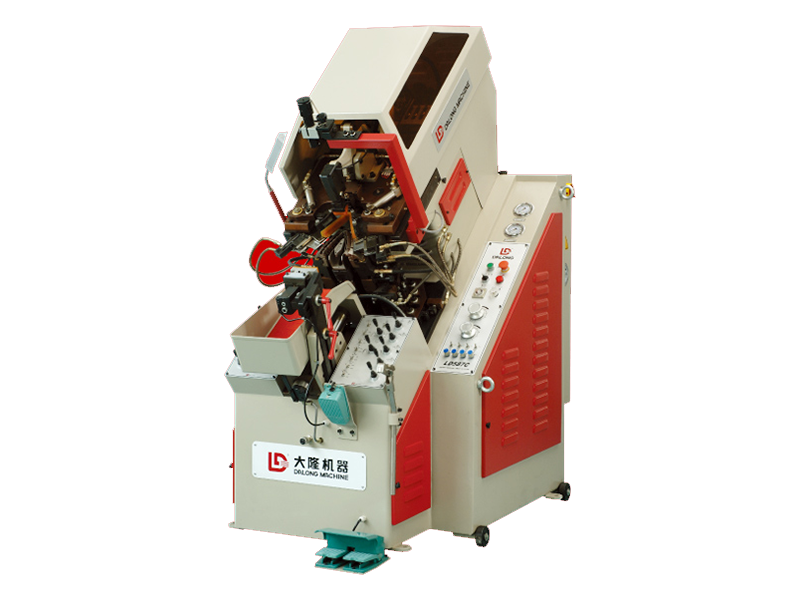

9-Pincer Automatic Hydraulic Toe Lasting Machine
LD-587C The machine sets up a new model for new generation toe lasting machine. With the basic fitting device of any kind of toe lasting machine, it also keeps the unique design method of our company. It is the best tool for shoes- making upgrade.
The design of free calibration of toe head pressing stroke supplies surely very stable pressing force , unaffected entirely by oil temperature or different pressure.
It has the pincers rapid installing and releasing structure. The fifth pincer, which adopts the new rotating technology structure, makes the upper more attached to the last.
The newly designed synchronous descending function for last support plates, which can change the pincer quickly without removing the outer support.
All-around forming band and specially tracked wipers ensure uppers more evenly and closely attached to lasts after lasting. No protrusion will happen. The surface becomes more beautiful and quality upgraded.
Pincer-plate's shoe size adjusting uses synchronous moving holizontal and independently at one side. Faster and accurately.
| Model | LD-587CM |
| Capacity | 1200 Pairs/8h |
| Power | 1.5 kw |
| Hydraulic pressure | 5 MPa |
| Heating power | 1.2 kw |
| N.W. | 1150kg |
| Dimension(LWH) | 1700x980x1950mm |
